Ball Valves
Ball valves are quarter‑turn isolation devices designed for dependable shut‑off, process isolation, and pressure control. Their compact design, low operating torque, and reliable sealing performance make them ideal for demanding industrial environments such as oil & gas, petrochemical, power generation, and process instrumentation
Key Features
Three‑piece body design for simplified maintenance
Quarter‑turn operation enabling fast shut‑off
Anti blow‑out stem for enhanced safety
Low operating torque reduces actuator size and cost
PTFE packing standard, graphite option available
High pressure capability up to 10,000 PSI
Multiple end connections: threaded, socket weld, butt weld, compression fittings
Wide material options including stainless steel, carbon steel, duplex, and alloys
Suitable for liquid & gas service
NACE compliant materials available upon request
| Specification | Details |
|---|---|
| Pressure Class | 6,000 PSI / 10,000 PSI |
| Max Working Pressure | 690 bar @ 38°C (10,000 PSI) |
| Available Sizes | ¼”, ⅜”, ½”, ¾”, 1” |
| Body Style | Straight Pattern |
| Construction | Three‑piece design |
| Body Material | 316 Stainless Steel (standard), Carbon Steel, Duplex & Alloy options |
| Stem Design | One‑piece anti blow‑out stem |
| Ball Material | 316 Stainless Steel |
| Seat Material | PTFE (standard), Graphite (optional) |
| Packing Temperature | PTFE: –73°C to +210°C, Graphite: –54°C to +510°C |
| Connection Types | Threaded, Socket Weld, Butt Weld, Compression Fittings |
| Thread Standards | NPT, BSPP, BSPT, Metric |
Needle Valves
Needle valves regulate flow with a tapered plunger that raises or lowers by turning the handle. Their small port design allows precise control in low‑flow applications, making them ideal for industries such as oil & gas, petrochemical, chemical processing, water treatment, and industrial facilities.
Key Features
Precise flow regulation with needle‑shaped plunger
High pressure capability up to 10,000 PSI
Compact bar stock design for durability
Female threaded connections for easy installation
Corrosion‑resistant SS316 material ensures long service life
Available in multiple sizes from ¼” to 1”
Suitable for critical industries including oil refineries, gas, and water treatment
| Specification | Details |
|---|---|
| Model | ND‑10000 |
| Working Pressure | 10,000 PSI |
| Construction | Bar stock design |
| End Connections | Female threaded |
| Available Sizes | ¼” – 1” |
| Material | SS316 Stainless Steel |
| Applications | Oil & Gas, Petrochemical, Chemical Processing, Water Treatment, Industrial Facilities |
Check Valves
Check valves are designed to prevent backflow in pipelines, ensuring one‑way flow and protecting equipment. They are widely used across oil & gas, petrochemical, power generation, pulp & paper, marine, and industrial gas applications. Available in cast, forged, and through‑conduit designs, they provide reliable sealing and long service life under demanding conditions.
Key Features
Backflow prevention for critical pipeline safety
Swing & piston designs to suit different flow conditions
Wide size range from ¼” to 48”
High pressure ratings ANSI 150# to 2500#
Material flexibility including carbon steel, stainless steel, alloy 20, and exotic alloys
NACE compliant materials available for corrosive environments
Multiple end connections: raised face, RTJ, threaded, socket weld
Soft seat options available for pipeline designs
| Specification | Details |
|---|---|
| Size Range | ¼” – 48” |
| Pressure Range | ANSI 150# – ANSI 2500# |
| Body Materials | WCB, A105N, LCC, LF2, CF8M, 316, 316L, Alloy 20, Hastelloy C, other exotic alloys |
| Trim Materials | 13Cr, SS316, Alloy 20, Monel, Hastelloy C |
| Seat Options | Soft seat available on pipeline designs |
| Gasket Materials | Graphite, PTFE |
| End Connections | Raised Face, RTJ, Threaded, Socket Weld, Threaded x Socket Weld |
| Design Types | Cast, Forged, Through‑Conduit (Piggable) |
| Compliance | NACE compliant |
Pressure Regulators
Pressure regulators are compact, large‑capacity, direct‑operated pressure regulators designed for reliable performance in demanding industrial environments. They provide precise pressure control across a wide range of applications including superheated steam, steam injection, steam tracing, nitrogen purging, boiler feed water, process chemicals, cooling water, sterilizers, fuel lines, and pneumatic supply systems.
Key Features
Compact design for easy installation and maintenance
Large capacity suitable for industrial flow requirements
Direct‑operated mechanism ensures dependable pressure regulation
Versatile applications across steam, gas, and chemical processes
Durable construction with steel body for long service life
Precise pressure control in ranges from 5–15 PSI
| Specification | Details |
|---|---|
| Model | MR95 Series |
| Type | Direct‑operated pressure regulator |
| Size | ½” (M95L 300RF) |
| Body Material | WCC Steel |
| Pressure Range | 5–15 PSI |
| Applications | Superheated steam, steam injection, steam tracing, nitrogen purging, boiler feed water, process chemicals, cooling water, test fixtures, wash tanks, sterilizers/autoclaves, fuel lines, pneumatic supply |

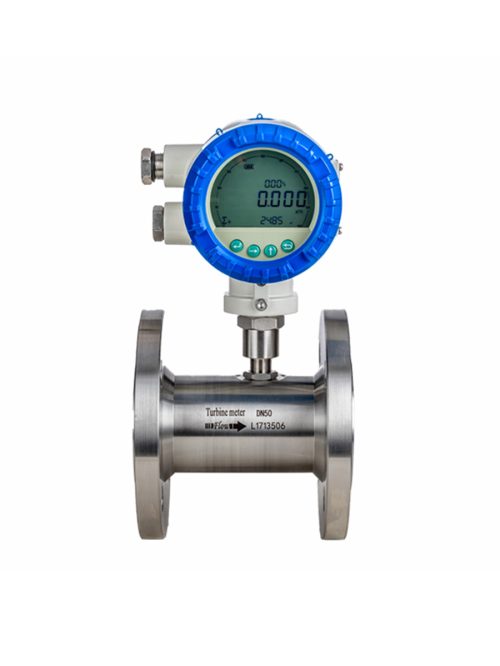

Flow Meters
Flow meters are precision instruments designed to measure the volumetric flow of liquids and gases. Built with durable stainless steel construction and advanced turbine technology, they provide accurate, reliable, and repeatable measurements for industrial applications. Suitable for both instantaneous and total flow monitoring, they integrate easily with digital systems for process control.
Key Features
High accuracy measurement from 0.2% to 1.5%
Wide flow range from 2.5 m³/h to 6,500 m³/h
Dual application for liquids and gases
Digital signal output for easy integration
Durable stainless steel body for long service life
Multiple pipe diameters from DN6 (⅛”) to DN125 (5”)
Wide temperature tolerance –20°C to +150°C
Pressure capability up to 16 bar (232 PSI)
Protection levels IP65, IP67, IP68 for harsh environments
Low power consumption with advanced microcomputer technology
| Specification | Details |
|---|---|
| Product Type | Flow Meter |
| Technology | Turbine |
| Fluid Compatibility | Liquids and gases |
| Pipe Diameters | DN6 (⅛”) – DN125 (5”) |
| Material | Stainless steel |
| Installation | Flange |
| Communication | 4–20 mA output |
| Protection Levels | IP65, IP67, IP68 |
| Flow Range | 2.5 – 6,500 m³/h |
| Process Temperature | –20°C to +150°C |
| Process Pressure | 16 bar (232 PSI) |
| Accuracy | 0.2%, 0.5%, 1%, 1.5% |

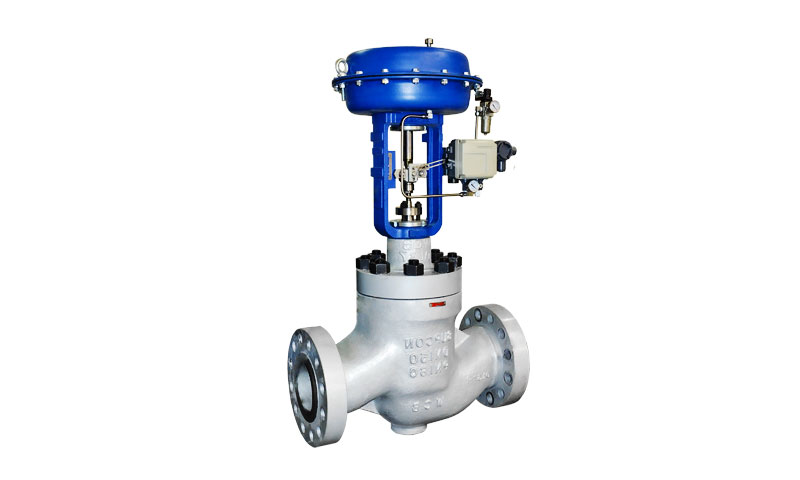

Control Valves
Control valves are the primary final control elements in automated process systems. They regulate flow, pressure, temperature, or level by modulating the passage of fluid in response to a control signal. Unlike isolation valves, control valves operate continuously, ensuring precise adjustment and stable process performance. They are widely used in oil & gas, power generation, chemical processing, water treatment, and manufacturing industries.
Key Features
Dynamic flow modulation for precise proportional control
Automated actuation via pneumatic, electric, or hydraulic actuators
Smart integration with digital positioners (HART, Fieldbus, Profibus)
Process compatibility for gases, liquids, steam, and slurries
Safety reliability with fail‑safe positions (open, closed, in‑place)
Wide operating range from vacuum to 700 bar, –200°C to +600°C
Noise & cavitation control with multi‑stage trims and diffusers
Versatile designs including globe, rotary, butterfly, diaphragm, and eccentric plug types
| Specification | Details |
|---|---|
| Function | Modulates flow, pressure, temperature, or level |
| Actuation Types | Pneumatic, Electric, Hydraulic |
| Control Signal | 4–20 mA, 3–15 psi |
| Body Materials | Carbon Steel, Stainless Steel, Duplex, Nickel Alloys |
| Trim Materials | Plug, Seat, Cage, Stem (hardfacing options available) |
| Temperature Range | –200°C to +600°C |
| Pressure Range | Vacuum to 700 bar |
| Valve Types | Globe, Rotary (Ball/Butterfly), Diaphragm, Pinch, Eccentric Plug |
| Positioner Options | Analog or Digital (HART, Fieldbus, Profibus) |
| Safety Features | Fail‑safe positions (fail‑open, fail‑closed, fail‑in‑place) |
| Applications | Oil & Gas, Power Generation, Chemical Processing, Water Treatment, Food & Pharma |
Safety Relief Valves
Safety relief valves are designed to protect pressurized systems by automatically releasing excess pressure when limits are exceeded. The Kunkle Model 300 and 600 series are versatile, high‑performance valves suitable for steam, air, gas, and liquid service. They provide reliable overpressure protection across industrial applications including boilers, pressure vessels, pipelines, and process equipment.
Key Features
Automatic overpressure protection for steam, air, gas, and liquid service
Versatile applications across boilers, pipelines, and process equipment
High pressure capability up to 300 PSI (Model 300) and 600 PSI (Model 600)
Durable construction with cast iron, steel, and stainless steel options
Multiple end connections including threaded and flanged designs
ASME certified for Section I and VIII service
Wide size range from ½” to 3”
Reliable sealing with renewable seat and disc options
| Specification | Details |
|---|---|
| Models | 300, 600 |
| Service Media | Steam, Air, Gas, Liquid |
| Pressure Range | Model 300: up to 300 PSI; Model 600: up to 600 PSI |
| Sizes | ½” – 3” |
| Body Materials | Cast Iron, Carbon Steel, Stainless Steel |
| Connections | Threaded, Flanged |
| Certifications | ASME Section I & VIII |
| Applications | Boilers, Pressure Vessels, Pipelines, Process Equipment |
